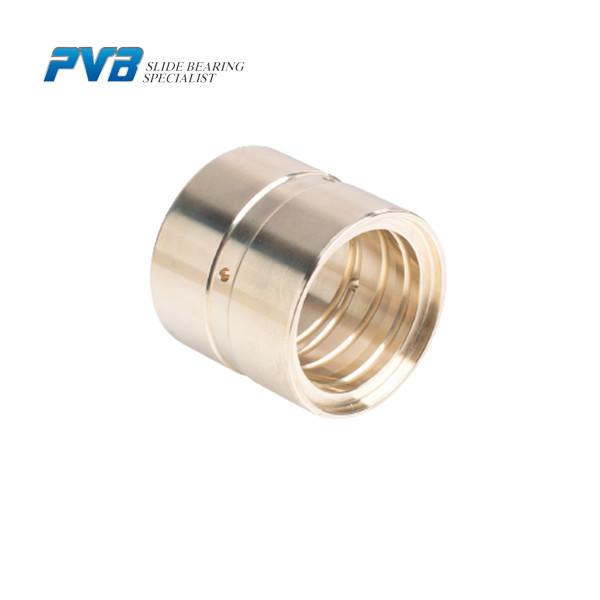

JLG C86300 Solid bronze bushing SAE430B high tensile brass bushes 91164031 HTB1 bronze bearing

JDB-1U Solid bronze bearing is made of high tensile brass with plain type or with oil grooves. This type of bushing is also called brass bushing bearing, C86300 solid bronze bearing, HTB1 CNC turned bronze bushing,SAE430B bronze sliding bearing and etc.

Material

CuZn25AI5Mn4Fe3

Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	Mn%
Min.	60.00	0.00	0.00	22.00	2.00	0.00	5.00	2.50
Max.	66.00	0.20	0.20	28.00	4.00	1.00	7.50	5.00

Oil Grooves Types

High Strength Solid Bronze Bearing Brass Sleeve Bushing 0

Characteristics

●Machined cast bronze bearings offer technically and economically favorable bearings solutions.

● High load capability, low weight and good corrosion resistance.

● The tolerance is much tighter than wrapped bronze bushes.

● All kinds of oil grooves can be choosed,lubricating by oil filled in the oil grooves.

Technical Data

Material	CuZn25Al5
Density	7.80
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

OEM Code We Often Made

91164031	8033820	10724719	8040624
91164032	10732968	91513104	8040716
70021622	91123027	91163204	10116227
7029979	91141301	91163018	90206046
8032978	91514218	91031391	10124257
10719114	91164018	91123028	8040723
10719110	7028380	91143109	91031374
70021749	10720889	10232366	0961257
10713872	91364030	0961614	0961257
91124087	91163014	10116228	0961416
91144026	70020429	0962401	0961369
7029978	0960192	91513011	0961353
8032977	0961731	91144080	0961293
91123031	0962404	0961621	0960524
70021907	91123102	1101132	0961029
70022062	0962402	54.0201.0006GT	0962244
