    PTFE Composite Sleeve Bearings Fabirc Textile Sleeve Bushing Self Lubricating

    Ask Lasest Price
    Brand Name : Joyreap
    Model Number : ZR-019
    Certification : ISO,IATF16949
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 300,000PCS/Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

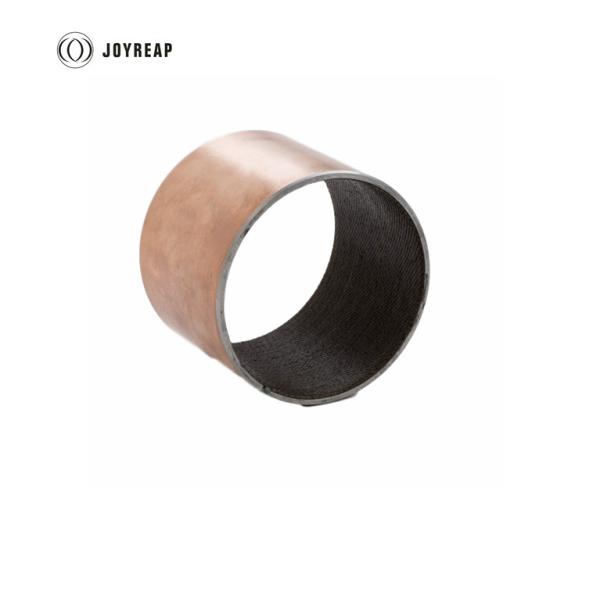

    PTFE Composite Sleeve Bearings Fabirc Textile Sleeve Bushing Self Lubricating

    Steel Back Sticked Woven Fabric PTFE Fiber Composite Plain Bearing Self lubricating Sleeve Bushes

    ZR-019 fabirc textile bushing is made of steel back with high performance PTFE woven fabric.


    Material Structure


    1. Steel Back

    2. Fabrice PTFE Fiber



    Characteristics


    • The PTFE material on the surface is reinforced by copper mesh, load capacity and wear resistance performance improved

    • Oilless lubrication

    • Gapless can be met with the elasticity of the material

    • No noise during working


    Application


    • Door hinges of automobile
    • Engine compartments
    • Trunk hinges
    • Wipers

    Tolerance Details


    • Housing ØH7
    • Bushing inner-Ø after mountingH9
    • Shaft tolerancef7 to h8

    Mouting Suggestion


    • Housing: Mounting bevel min. 1.5 mm x 15-45°
    • Shaft Material:Steel, hardened or untempered, surface roughness ≤ Rz 2-3 Shaft: Mounting bevel 5 mm x 15°, edges rounded
    • The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting
