ZR-037 CuSn6.5P Bimetal Bushing Bronze Alloy Lead Free Bimetallic Sliding Bearing Bushing

ZR-037 wrapped bimetal sliding bearing is made of steel back with CuSn6.5P layer.the inner bronze alloy surface of bimetal bush can be processed with various types of oil grooves, oil hole and oil pockets according to the different working applications, to suitable for the conditions which can not continuously put oils or difficult to apply the grease.

1. Sinter bronze liner material: CuSn6.5P0.1
2. Metal backing low carbon steel back

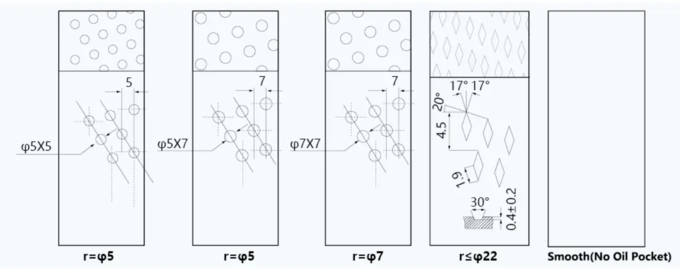

Inner Surface Oil Pockets Types

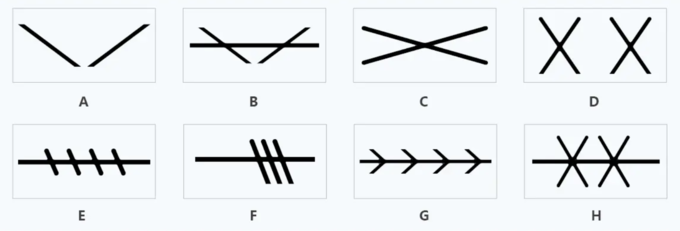

Bimetal Bush Oil Grooves types

Bimetal Bushing Gap Types

Characteristics

• High fatigue strength
• High load capacity
• Good sliding performance
• It can replace the bimetal bearings with lead or copper bushings in many occasions.

• Standard cylindrical bimetal bushing, bimetal thrust washers and bimetal strips
• Special designed bimetal bearings are produced at short notice
