Bronze Sliding Sleeve Bearing H62 H68 Brass Bushings Caliper Kits

H62 H68 Rolled Bronze Sliding Sleeve Bearing Caliper Kits Brake System Used Brass Bushings

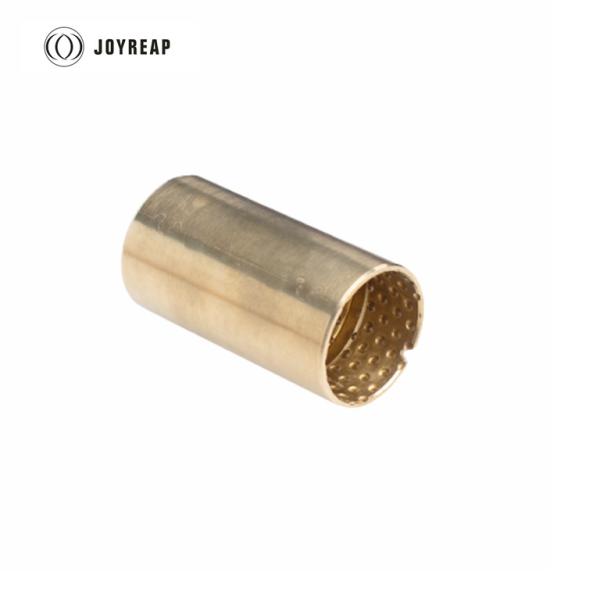

ZR-093 brass rolled bearing is made of specially formulated high-density brass alloy with round oil pockets and grooves. This type of rolled bronze bearing also called , brake shoe bronze bearing,bronze wrapped plain bearings.brass sleeve bushing bearing and etc

Material Structure

Material: H58,H62 or H68

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard

PVB Bronze wrapped bushing use high density bronze strips to roll the spherical oil pockets as material structure.We can make rolled bronze bearing with dimond oil pockets, round oil pockets and smooth suface based on customers requirements.

Characteristics

Surface can be incorporated with spherical of diamond shaped indentations or oil grooves linear. Particularly suitable for oscillating bearing.
High load capacity and long life.
Easy to installation
Cheap than traditional bronze bush, cost saving.

Specification

Operation Permance

ZR-093 Bronze bushings	Performance
Dry Operation	Poor
Lubricated Operation	Good
Greased Operation	Good
Machinable	Consult with Applications Engineer
RoHS Compliant	Compliant

Application

ZR-093 bronze rolled sleeve bearing is widely used in brake system, caliper repair kits

We often make the following items based on OEM code

Description	OEM	Application
Brass Bush	03.112.99.04.0	16 tons BPW
Brass Bush	03.112.99.02.0	12 tons BPW
Bronze Bush	03.112.44.31.0	BPW
Bronze Bush	03.112.76.13.0	BPW
Brake Camshaft Bush	03.112.44.34.0	BPW
Brake Camshaft Bush	03.112.44.12.0	BPW
Brake Camshaft Bush	03.112.44.22.0	BPW
Brake Camshaft Bush	03.112.44.30.0	BPW
Brake Shoe Bushing	03.112.33.08.0	BPW
Brake Shoe Bushing	03.112.22.07.0	BPW
Brake Shoe Bushing	03.112.22.21.0	BPW
Brake Shoe Bushing	03.112.22.24.0	BPW
Brake Shoe Bushing	03.112.22.30.0	BPW
Equalizer Brass Inner Bush	163-083	BPW
Equalizer Brass Inner Bush	163-082	BPW
Equalizer Brass Inner Bush	163-082	BPW
brake Shoe Bush	03.112.33.04.0	BPW
brake Shoe Bush	03.112.33.03.3	BPW
brake Shoe Bush	03.112.22.21.0	BPW
