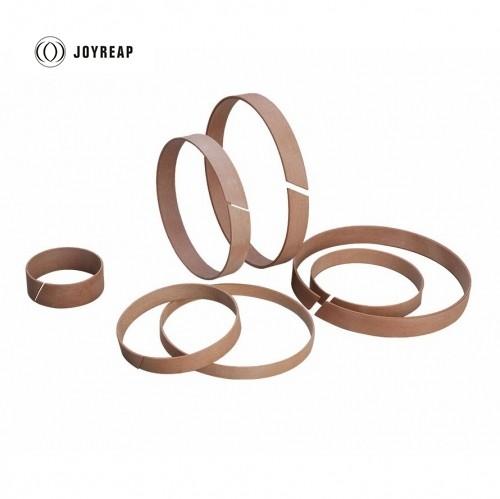

Brown Phenolic Resin Wear Ring Cloth Reinforced Guide Ring Fda

High Strength Guide Fda Phenolic Wear Ring Cloth Reinforced

PFC-10 Guide Ring is made of high-strength laminated material based upon the thermosetting phenolic resin and reinforced with high-quality cotton fiber and finally finished with heat solidifying process under certain pressure and temperature. This material is featured in its high load sustainability, excellent temperature resistance, abrasion resistance and excellent dimensional stability. It is applied to the production of guide rings of hydraulic cylinders, support rings, engineering machineries, bushings for the pivot axles for vehicles, thrust plates, guiding sleeves for the pillars of hydraulic machines, etc.

Material

thermosetting phenolic resin+cotton fiber

Advantages

high load sustainability,
excellent temperature resistance,
abrasion resistance
excellent dimensional stability

Application

Guide rings and support rings of hydraulic cylinders
Bushings for the pivot axles for vehicles and engineering machineries
Guiding sleeves for the vertical pillar of hydraulic machineries and forging press

Technical Data

Specification	Color	Density 3(g/c㎡)	Tensile strength	Compressive strength		Hardness	Coefficient of friction		Temperature
									(℃)

				Parallel to the laminated plane	Vertical to the		Dry	Oil lubrication
					laminated plane
PFC-10	Light yellow to brown	1.2-1.4	≥45 (MPa)	≥168	≥256	92HRM	0.23-0.46	0.12-0.14	-40 ～ +130
