MBSH45 67HRC FZL Aluminum Ball Retainer Bearing BSA BSJ Cages Universal For Die Sets

Ask Lasest Price
Brand Name :	Joyreap
Model Number :	FZL
Certification :	ISO,IATF16949
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100000
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

MBSH45 67HRC FZL Aluminum Ball Retainer Bearing BSA BSJ Cages Universal For Die Sets

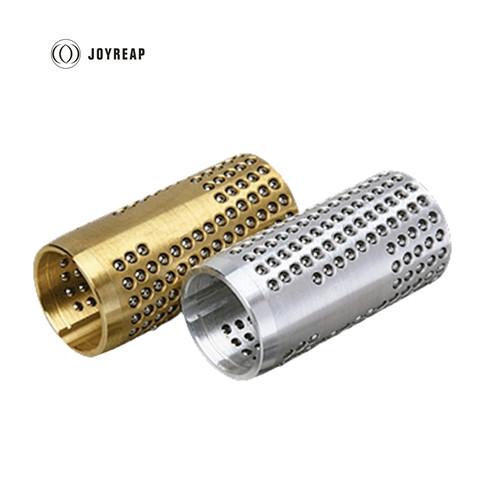

FZL Aluminum Ball Bearing Cages Ball Bearing Retainers For Die Sets

FZL ball retainer bearing is made from heat-treated aluminum alloy that combines durability and strength, offering optimum life in high or low speed stamping presses. Quality is assured by constant verification of dimensions, using modern instruments throughout the manufacturing process

Material Structure

Aluminum +Steel Ball

Characteristics

Universal
Combines smooth running and long service life
the balls are arranged on a helical line which is optimal for stroke movements and rotational movements

Application

Tool & Die Makers
Metal Stamping
Production Equipment
Automation
Aerospace
Medical Equipment
Electronic Parts & Connectors
Can Manufacturing Industry >
Metal Washers & Shims
Automotive Industry
Stamping Die Manufacturers

Technical Data

Material	Aluminum+Steel Ball
Max. load Capacity	30N/mm²
Shrink fit	0.01mm~0.02mm
Max Sliding Speed	6m/s
Coef Friction	0.01~0.08
Rolling Diameter Deviation	<0.002mm

MBSH45 67HRC FZL Aluminum Ball Retainer Bearing BSA BSJ Cages Universal For Die Sets
